JAG SYSTEM HAUL KIT

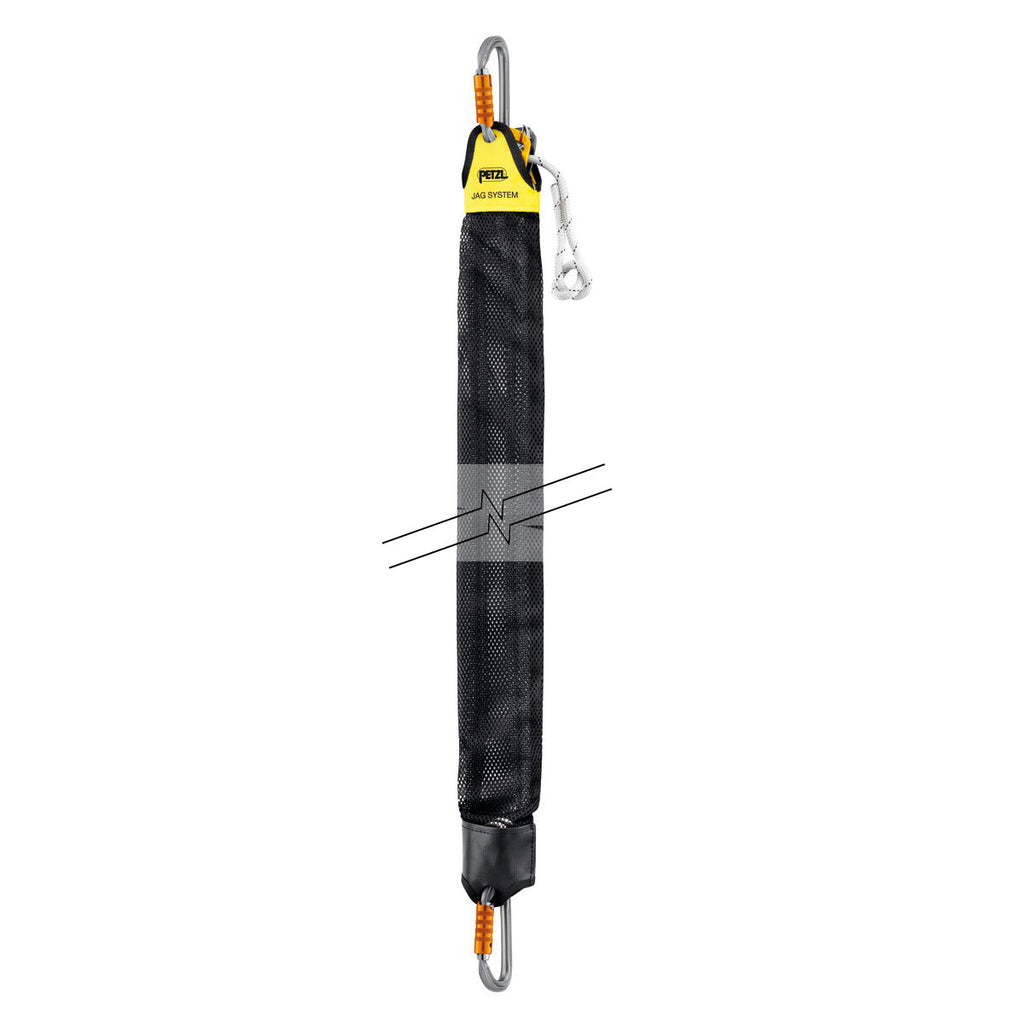

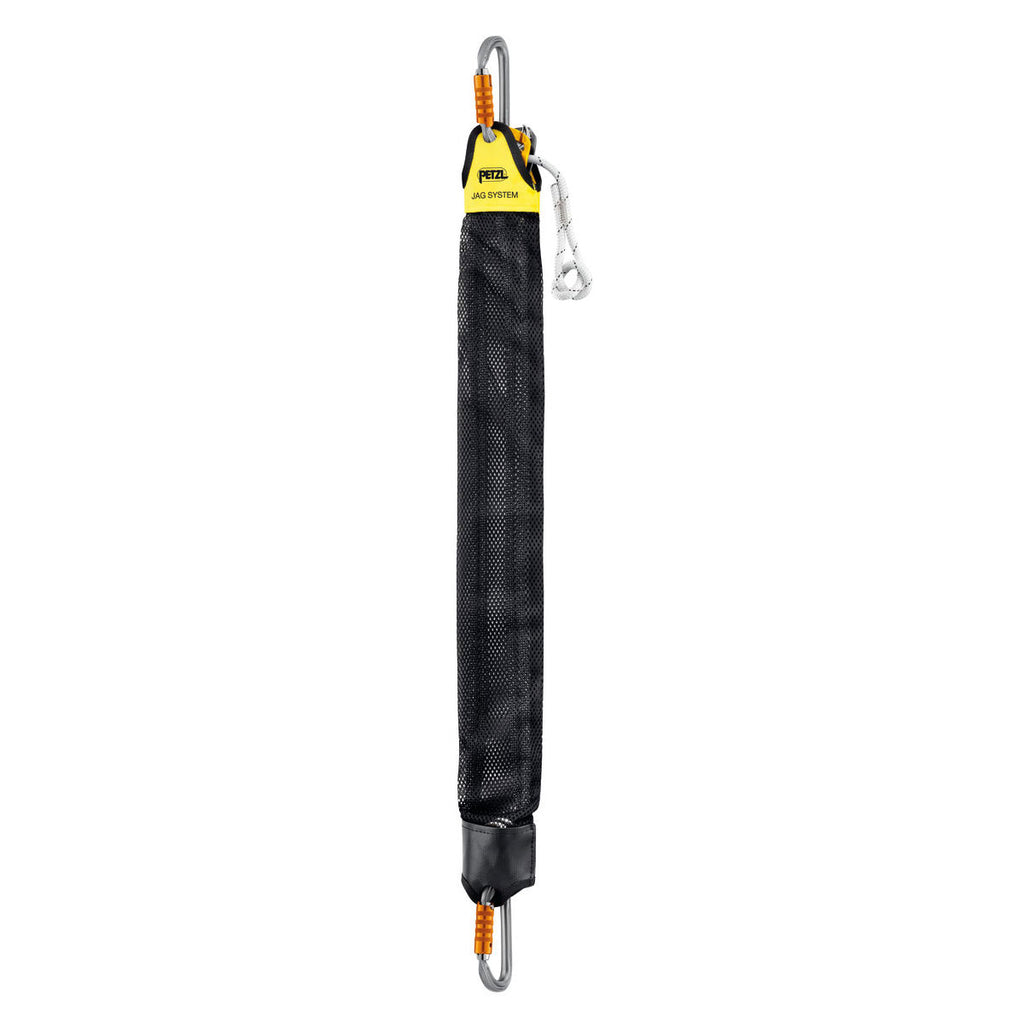

JAG SYSTEM haul kit.
Ideal for pickoffs, making a releasable anchor or tensioning a system, thanks to its 4:1 mechanical advantage and good efficiency. The collapsible kit is compact, making it usable in situations with limited head-room to the anchor. Its unique, flexible mesh coverprevents tangling for easy deployment.
Available in three lengths, 1, 2 and 5 m.
Kit contais:
• JAG sheave pulley: 2 sheaves on sealed ball bearings
• JAG TRAXION pulley: 2 sheaves on sealed ball bearings
• Two Am'D Triple action Karabiners
• Static cord
• Rigged in tangle proof mesh cover
Specifications:
• Cord diametre: 8 mm
• WLL: 6 kN
• Break strength: 16 kN
• Efficiency: 91%
RATING
if no rating is displayed below, please check the Description above or visit petzl.com for more information.
Rating: 16kN
PART NUMBER(S)
- 1M: P044AA00
- 2M: P044AA01
- 5M: P044AA02
WEIGHTS
- R057,P044AA00: 0.610 kg
- R057,P044AA01: 0.805 kg
- R057,P044AA02: 1.460 kg
BARCODES
- R057,P044AA00: 3342540817593
- R057,P044AA01: 3342540817609
- R057,P044AA02: 3342540817616
